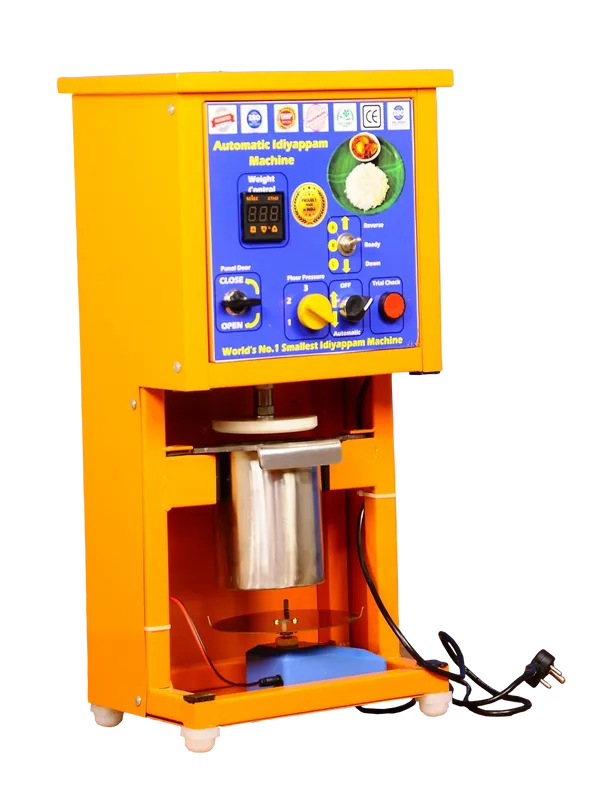

Automatic Idiyappam Making Machine

Speciallity in compact Model Machine

Machine Weight :19 Kg
Idiyappam Weight: 30 to 90 grams
Idiyappam Diameter: 100 to 150 mm
Idiyappam thickness: 0.9 to 2 mm
Processing time: 10 sec/Piece
Power : 60 Watts
Input Voltage : 220 – 240 V AC
Inverter Compatible : YES
Technology: Robotics
Production speed : 350 plates/hour (15Kg/hr)
Dimension : 30x25x65 cm
Bowl capacity: 1.250 Kg
Special name : Kutty Machine

An idiyappam making machine is a machine used to make the traditional South Indian breakfast dish, idiyappam. The machine has a hopper at the top where rice flour is poured into. The flour is then pushed through a die that shapes the dough into noodles. The machine is easy to operate and can produce large quantities of idiyappam quickly and efficiently.

Category:

MADique Introduces Idiyappam making machine that are industry leading in versatility – the Idiyappam size, shape, and thickness can be easily adjusted. It comes with both semi-automatic and fully automatic versions.

An advanced power drive increases the accuracy, while protecting the motor from heating and overload. The Stainless steel enclosure and powder-coated internal parts renders long life with high resistance to wear-and-tear.

All parts that come in contact with the flour dough are made up of  304 food grade stainless steel that can also be washed easily. This idiyappam making machines are very user friendly so any one can operate without any special machine operating skills.

It has a very low footprint thus making it very compact and portable.  There is absolutely no need of heavy actuators for powering  using  hydraulics or  air compressor. The actuation is done using advanced patented gear technology which requires  no maintenance and yet offers superior quality outputs for longer periods.

The machine design keeps power consumption to the bare minimum ; so the ultra-low power needs can be easily met by residential single phase power supply. The Compact model integrates  Robotic technology in its construction  which renders accuracy and premium quality in production of  Idiyappams.
